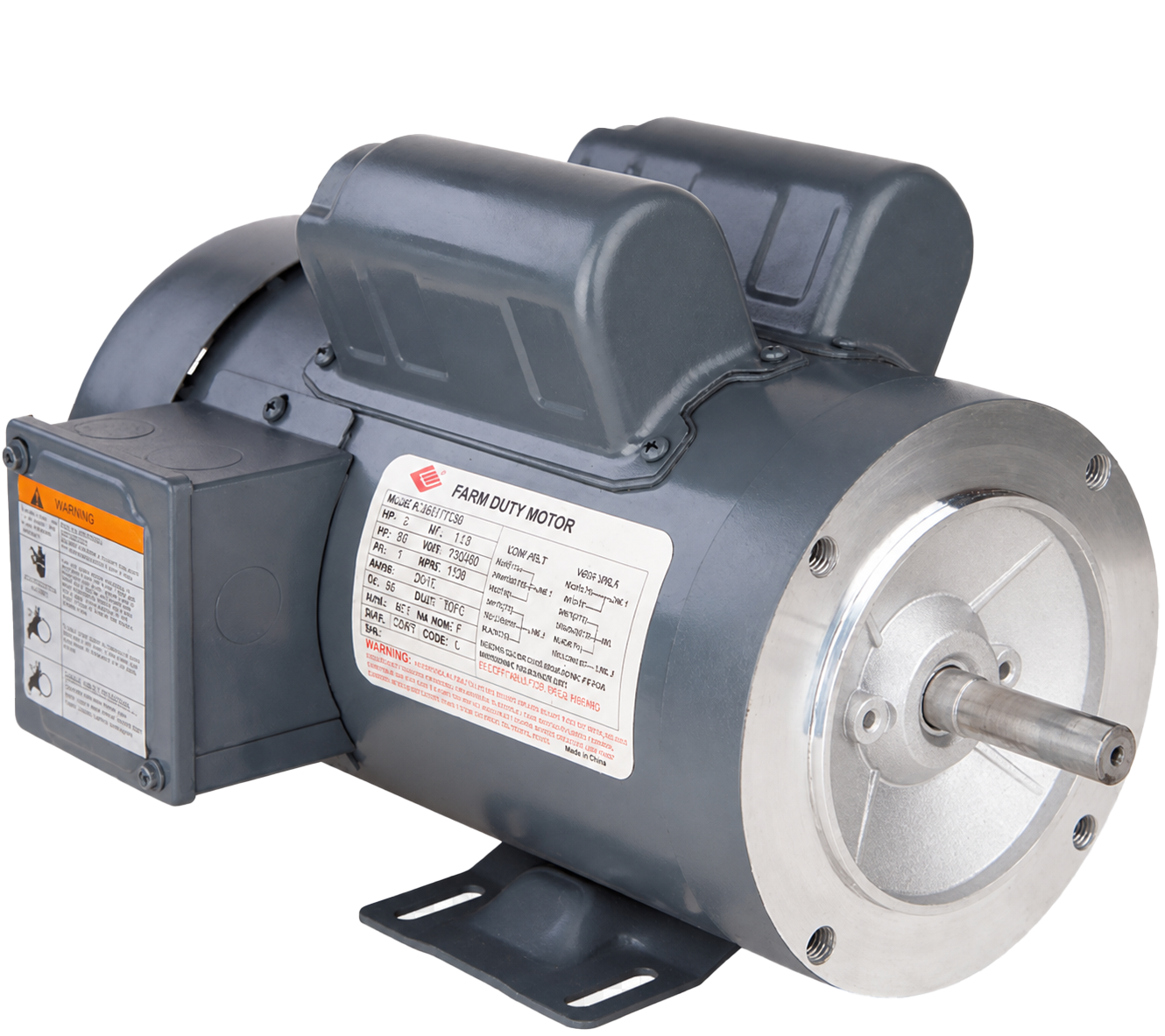

NEMA Frame
North American frame dimensions for compatible industrial motor installations.
REQUEST DETAILS ->
0+PROVEN OEM APPLICATIONS
0%Q.C TESTING
0hrPROJECT EVALUATION
ENGINEERED FOR OEM APPLICATIONS
AC Motors
AEP offers customizable induction motor solutions for OEM customers who need more than standard catalog options. From prototype development to low-volume production, we support tailored motor designs with flexible choices in performance, mounting, shaft configuration, enclosure type, and protection features.
PRODUCTS & CAPABILITIES
AC Motor Product Families
01
FRAME CONFIGURATION
Select a mounting standard that fits the equipment interface and installation requirements.

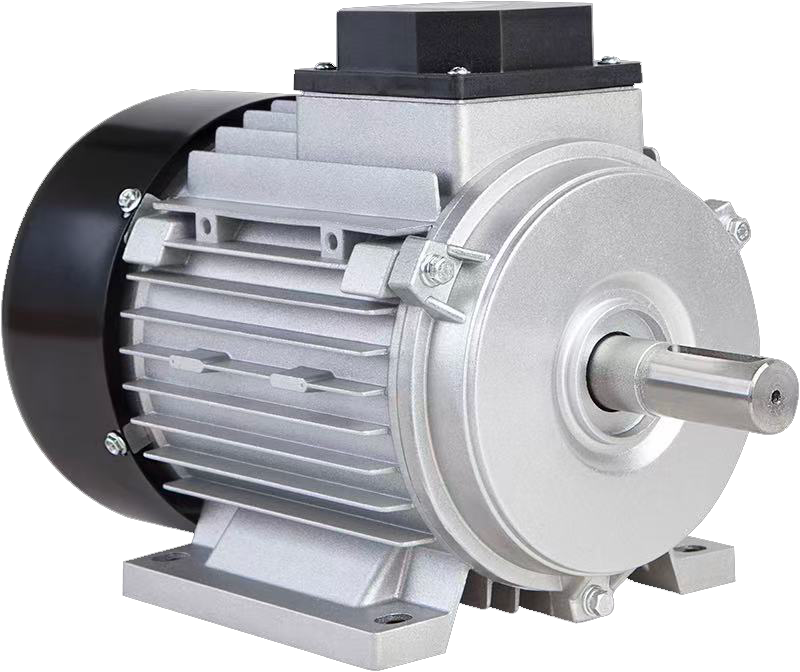

IEC Frame
International frame dimensions for global OEM equipment and replacement requirements.
REQUEST DETAILS ->Special Frame
Customized frame dimensions for application-specific space, mounting, or shaft requirements.
REQUEST DETAILS ->02
ENCLOSURE
Choose the enclosure construction and typical ingress protection level for the installation environment.
ODP — Open Drip-Proof
Open construction for clean, relatively dry indoor environments. Typical protection: IP23. Final IP rating depends on the specific motor design.
REQUEST DETAILS ->TEFC — Totally Enclosed Fan-Cooled
Enclosed motor with an external cooling fan for industrial environments exposed to dust, dirt, or moisture. Typical protection: IP55.
REQUEST DETAILS ->TENV — Totally Enclosed Non-Ventilated
Enclosed motor cooled by natural convection or the motor surface, suitable for lower-speed or limited-duty applications. Typical protection: IP54–IP55.
REQUEST DETAILS ->TEAO — Totally Enclosed Air-Over
Enclosed motor designed to be cooled by the airflow of the driven fan or blower. Typical protection: IP55; confirm the rating for the selected motor.
REQUEST DETAILS ->03
VOLTAGE AND POWER SUPPLY
Choose the electrical supply configuration that matches the equipment and operating market.
Single Phase and Three Phase
Single Phase: For smaller equipment and single-phase power environments.
Three Phase: For industrial equipment requiring balanced power and reliable continuous operation.
REQUEST DETAILS ->Single Voltage and Dual Voltage
Single Voltage: Configured for a specific rated supply.
Dual Voltage: Supports two rated voltage configurations for installation flexibility.
REQUEST DETAILS ->Single Frequency and Dual Frequency
Single Frequency: Designed for operation at one specified grid frequency.
Dual Frequency: Supports 50 Hz and 60 Hz operating environments.
REQUEST DETAILS ->04
DUTY CLASSIFICATION
Select the IEC duty cycle that matches the motor's operating pattern and thermal loading.
S1 — Continuous Duty
Continuous operation until the motor reaches thermal equilibrium. Typical applications include fans, pumps, HVAC systems, conveyors, and long-running industrial equipment.
REQUEST DETAILS ->S2 — Short-Time Duty
Operation for a limited period followed by a stop long enough for the motor to cool. Typical applications include electric doors, lifting equipment, and short-duration actuators.
REQUEST DETAILS ->S3 — Intermittent Periodic Duty
Repeated cycles of operation and rest where starting has limited thermal influence. Typical applications include air compressors, packaging machinery, conveyors, machine tools, and agricultural equipment.
REQUEST DETAILS ->Other Duty Requirements
Need a different duty cycle? Contact us with the operating period, rest period, load profile, starting frequency, and application environment.
REQUEST DETAILS ->05
EFFICIENCY CLASSIFICATION
Select the efficiency level that balances operating cost, performance, and project requirements.
Standard Efficiency
A practical option for general-purpose equipment and cost-sensitive applications.
REQUEST DETAILS ->High Efficiency
Improved energy performance for equipment with regular or extended operating hours.
REQUEST DETAILS ->Premium Efficiency
Higher efficiency for demanding industrial applications and reduced lifecycle energy cost.
REQUEST DETAILS ->Super Efficiency
Maximum efficiency focus for projects prioritizing energy savings and long-term operating performance.
REQUEST DETAILS ->06
SPECIALTY
Specialized motor solutions for demanding operating conditions, control systems, and highly specific OEM requirements.
Variable Speed
Motors designed or selected for variable-frequency-drive operation, with attention to insulation, speed range, cooling, and bearing protection.
REQUEST DETAILS ->Explosion Proof
Motors for hazardous locations where the enclosure and certification must match the classified environment and applicable safety requirements.
REQUEST DETAILS ->Submersible
Motors designed for submerged or water-exposed applications, with appropriate sealing, insulation, corrosion resistance, and ingress protection.
REQUEST DETAILS ->Highly Customized
Application-specific motor designs covering mechanical dimensions, shaft configuration, voltage, speed, torque, duty cycle, enclosure, and mounting requirements.
REQUEST DETAILS ->CUSTOMER-PROVEN APPLICATIONS
Built for Real-World Performance
Agricultural Ventilation Fans
Motor solutions for belt-driven and direct-drive axial fans.
Air Compressors
Reliable starting torque and long service life under cyclic loads.
Conveyor Systems
Motors for packaging, handling, and assembly lines.
Rolling Door Drives
Compact motor and transmission solutions supporting quiet operation and reliable torque.
Pool Pump & Water Circulation Systems
Continuous-duty motor solutions for outdoor water circulation equipment.
Woodworking Machinery
Stable and dependable daily power for saws, planers, sanders, and dust collection.
FROM SELECTION TO PRODUCTION
OEM Motor Development Support
AEP helps customers match motor construction, protection level, mounting style, and supply requirements to the actual equipment environment instead of forcing every project into a standard catalog model.
Application Matching
- Compressor, pump, fan, conveyor, and machinery use cases
- ODP or TEFC construction based on exposure conditions
- High-starting-torque options for demanding loads
Mechanical Configuration
- Rigid base, resilient base, and C-face mounting options
- Custom shaft direction, length, keyway, and material support
- Frame and enclosure choices aligned with installation space
Electrical Requirements
- Single-phase and three-phase motor programs
- Capacitor start/run and thermal protection options
- Voltage, frequency, and efficiency choices by application
Production Support
- Prototype and sample review before production
- Quality checks for appearance, noise, current, and performance
- Flexible sourcing support for low-volume and repeat orders
YOUR NEXT OEM PROJECT
Let's work together
From engineering support and prototyping to quality control and volume manufacturing, we help turn OEM projects into reliable, cost-effective solutions.
